• Natural house made from earth for us

    TsaTsa House





    -Natural house

    made from earth

    for us-















    "Treat the earth well:

    it was not given to you by your parents,

    it was loaned to you by your children.

    We do not inherit the Earth from our Ancestors,

    we borrow it from our Children."



    Lakota

  • Embed an App

    Or write your own HTML code! (HTML is Pro only)

  • Inspiration



    This is about earthen architecture



    and a new way of building,



    simple, fast and beautiful



    : earth bag ,



    using mostly the soil beneath our feet, sandbags



    and barbed wire...





    The inspiration is our mother Earth ,



    as everything in the universe is composed from the 5 elements (earth, water ,air ,fire and space),



    we need to use these to create like some of the people who inspire us,



    All the earth builders and among them, Nader Khalili, iranian architect ,



    he had a dream to create a way to build in harmony with nature,



    and develop the earth bag system at cal earth with some associates


    they never forgot the human need and bring solution for low cost and low impact housing, respecting human and nature.

  • Conception



    -DESIGN





    The strongest structures in nature are arches,domes,vaults,apses...



    by trading corners for curves we fortify the structural integrity of our architecture,



    and uses least amount of materials while providing the maximum amount of space.



    Domes rely on 2 opposing natural forces to hold them together



    : gravity & tension,



    let's take a simple example,



    a fresh raw egg, if you try to break it in your hands it will resist your effort,



     like an egg , the dome has a double curvature wall, it curves in both the horizontal and vertical plane in the same time.



    Our choice to build to give maximum safety with minimum impact is the dome with all the different variations in design.



    It's beautiful,strong and unique.



    they offers 3 principles



    - resisting the pull of gravity by compression



    - resisting the heat of the sun by creating a sun and shade zone and thus air currents


    - fighting the earthquake by sharing the forces equally, and of fighting the wind by softening its harsh blow in the curves surface...



    (from racing alone,Nader Khalili)





    10 ft dome

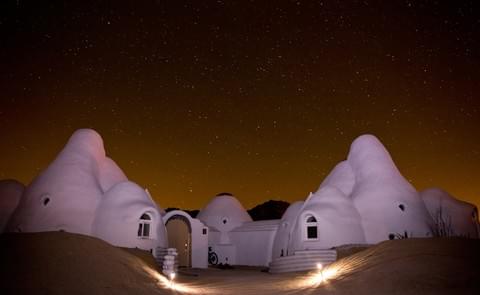

  • dome with apses around like ecodome

  • or double ecodome ,

  • until the creation of cluster of domes to create infinite possibility ...



    the dome is just amazing

  •



















    ADVANTAGES











    The earth bag system has proven to withstand the ravages of fire, flooding, hurricanes, termites ..



    and two natural earthquake measuring over 6 and 7 on the Richter scale.



    In 1991 at cal earth,under static load testing conditions simulating seismic, wind and snow loads, the tests exceed uniform building code of California by 200%...



    some other advantage are :



    -the thermal performance, earth bag walls function as an absorbent mass, it's able to store warmth and reradiate it back, it gives a 12 h delay in



    energy transfer from exterior to interior, this means that at the hottest time of the day the inside is at its coolest, while at the coolest time of the day



    the interior is at its warmest. In winter it keeps the heat inside longer... acoustic and radio wave isolation...



    Earth bag method offers more benefit than any natural construction,



    it has more structural integrity than adobe ( a sun-dried, unburned brick of clay and straw), more plasticity than rammed earth,


    more speed in construction than cob ( a mixture of clay and straw used as a building materials ).



    Although earth bag is new compared to these ancient building methods,



    it offers superior economy and durability, earth bag construction offers broad possibility for ultra low cost and low impact housing, especially in region



    where timber, grasses, cement and fuel are scarce.

  • Vision



    -COMMUNITY BUILDING ALL OVER THE WORLD





    According to the Japanese government's white paper on disaster management 2009,



    "106 million people become victims and 95000 lives are lost every year around the globe, with losses worth more than 36.8 billions $..."



    if we want to help and bring solutions,



    the only way is to teach people how to use the earth under their own feet ,



    such simple technology based on eco-friendly and indigenous ways exists today.



    Build as a community,with friends,neighbours as we use to do not so long ago, show people and teach them this simple way of building to be self



    sufficient is our goal.

    -ECO-FRIENDLY CONSTRUCTION





    Respect the nature and take care of it,



    realise that all we need to build is around us and



    easily available.



    More than all, earthen architecture endures ,



    if we can build one ecological friendly house in our



    lifetime that is habitable for centuries we will have



    contributed towards a sustainable society.

  • Solution



    -EARTHBAG





    Sandbags and barbed wire technology,



    the super-adobe technique .



    It was developed by Nader Khalili, an



    iranian architect and humanitarian who



    never forgot the human need and creates



    Cal-Earth - The California Institute ...



    imagine it as bags filled with the earth that



    is on site, and arranged in layers or long



    coils, strands of barbed wire between



    them act as a both mortar and



    reinforcement

  • Materials







    Bags, Barbed wire, Shovels, Pipes, Tamper, Scissors, Wheelbarrows, some chains for the Compass ...



    is the minimum ,



    you can add a cement or lime mixer to be more efficient.



    What you need is:

    -Earth




    the best mix to put in the bags will be



    80% sandy soil and 20%clay,



    thus the big advantage is we can use



    mostly any kind of earth ,



    we don't need some specific ratio like



    the other kind of earth architecture.

    -Bags



    any woven bags ,



    from burlap to hemp...



    most of time they' re polypropylene like



    rice bags cheap and available



    worldwide...



    the advantage of using long bags in



    roll gives more flexibility and efficiency

    -Compass



    super adobe dome is not a



    hemisphere,



    but it has a taller "lancet" or "ogival"



    shape because of the structure and



    method of building,



    for this we just have to follow 2



    compass,one height compass and one



    centre compass

    -Barbed wire



    4 points barbed wire uses as a velcro



    mortar between every row of bags,



    it clinches the bags together and



    provides exceptional tensile strength.

    -Tamping



    just after the bags are lay we tamp or



    ram it,



    that means we compact the earth



    inside the bag to make a uniform



    ring,



    this gives the earth mixture its



    strength.

    -Ventilation



    we will use some pipes as a natural



    ventilation system to aspire the air out,



    the pipes are use as windows as well,



    we can put as much as we want

  • Plaster



    To finish we will apply some plaster ,



    to protect the bags from the sun ( a polypropylene bag has 300 to 500 uv hours lifespan ) and for the waterproofing of the structure .



    Depending on the climate we will find the best mix suitable including some stabiliser (lime,cement,bitumen...)if necessary ,



    if we go for a natural one some easy maintenance is required once a year.

  • Time & Cost



    Materials are inexpensive, abundant and accessible ,



    Basically earth-bag building save time and money,


    the cost can vary from few dozens dollars for a simple shelter built in one day, to hundreds for a 10 foot dome,

    or like here in Iran for the UNHCR



    in a refugee camp in 1996, more than 15 domes



    built in 21 days by the refugees themselves with the



    help of one instructor,



    for a 15 foot dome from 621$ to 1000$ for an



    upgrade one (electricity,water,windows...)

    to thousands for a full structure like an ecodome



    (15 foot diameter with a living space of 55 sq m)



    the cost was 9000$ in 2003



    built in in Usa with a full finishing



    (kitchen,bathroom,toilet....)



     Another example in Japan in Hokkaido in 2010 ,



    a 4 m diameter dome with



    electricity,water,window,door...



    for a cost of 1400 us dollars.

  • It' s difficult to really give an average  price as it varies to the conditions ,



    countries, community work, all this different aspects give different prices.



    just be sure it's one of the cheapest way to build in harmony.

  • US

    Xavier



    Originally from France ,



    travelling since the last 15 years over our beautiful



    planet, sharing the life of our brothers and sisters ,



    he wants to give back  all the love he receives,



    asking himself some questions he is looking for



    solutions and get interest in earth architecture,



    studying in Auroville in India for some time,



    he decides to go to Cal Earth as a long term



    apprentice and realizes earth bag is one solution to



    provide affordable,sustainable housing,



    now acting to built these beautiful and respectful



    house all over our planet,



    just because to get a home must be a right and not



    an option.

    Soyoko



    Xavier's partner,



    originally from Japan,



    supporting about earth bag activity,



    for 13 years she was dancer in Tokyo and felt she is



    missing something toexpress by dance,



    she realises she need to remember the connection



    with nature, and left  the city life and spend time in



    nature, travelling in India,Indonesia...



    Now she is learning about natural agriculture and



    sustainable way of living (permaculture design...)



    with some experiences in Japan and India...



    She hopes their activities and life style itself will



    contribute to people happiness .
